Engine does not start, no spark => Replace the battery with a new battery

The CDI on domestic engines requires the battery to deliver more than 10.6 volts while cranking the engine. An old or weak battery can not deliver enough voltage while the engine is cranking, and you will not have spark. This is a very common problem with Polaris PWC.

Even if the battery is 'brand new' you should take the time to actually measure the battery voltage with a multi-meter (not the voltage on the Polaris MFD display). Connect the multi-meter, then watch the battery voltage sag when you press Start. If the voltage does not stay above 10.6 volts the battery is no good. Even if you just bought it.

Want to buy a good battery? Look for a high quality factory sealed AGM type battery.

Why do I have no spark (or spark only when I release the Start button)?

Engine Problem diagnostics (1992-1997)

Start by checking compression and crank indexService Bulletin PWC-00-05 (Fixes no restart when warm, no restart after stopping)Move CDI Red/Purple wire to Orange terminal for reliable engine restarts How to do Service Bulletin PWC-00-05 (CDI Red/Purple to Orange) Fix no-warm-restartApplies to all domestic engine carburetor Polaris PWC, two and three cylinder red engines 1996-2000 (and possibly some 2001)All later model red domestic carburetor engines through 2004 were wired this way from the factory.How the LR module controls domestic CDI power, and ensures reliable warm re-startsSpecial note for 1999 Genesis (carburetor engine): an additional Orange wire must routed between the two separate electrical boxes

Polaris PWC wiring colors - what each wire color is used for, Fuji and domestic

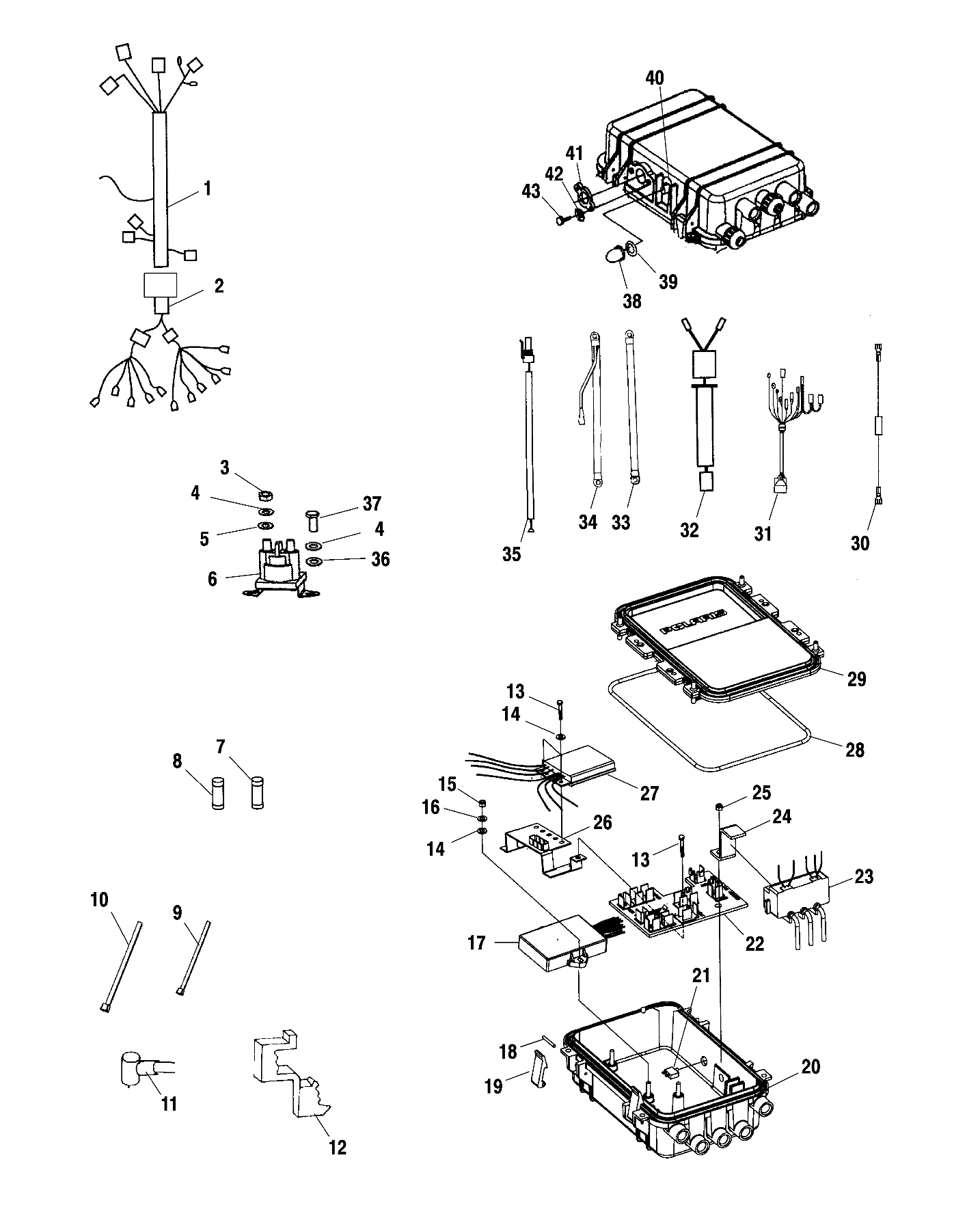

What wires are for what - How the basic electrical wiring system works (domestic carb models)

How to figure out which cylinder is running poorly

By testing the cylinders one at a time, you can narrow down which cylinder is dead or weak. Ground the ignition wires for all but one cylinder, and see if it will start (you may need to squeeze the throttle to get it to run). If it does, ground that plug wire, and test the next cylinder. Each single cylinder should run the engine about the same.

This video shows the process in action.

In this example, there were two problems. Incorrect spark plug firing order and the PTO carburetor was missing a part!

Ignition System - red Domestic engines

Basic theory of operation, Version differences

Polaris domestic engine Ignition System Update Kits

Applies to all 1996-1999 two and three cylinder carburetor engines

Note: Update kit does not apply to the 1999 '1200'(1165cc) engines

The original factory ignition in these 1996-1999 engines was not reliable over time, so Polaris issued these ignition update kits.

The original domestic 1996-1999 ignition systems '...WILL fail eventually...'

Kit part numbers 2873091, 2873022, 2873355, 2873356

2873022 1996-1997 Hurricane and twin carburetor 1998-1999

2873355 1996-1997 twin carburetor except Hurricane

Note: Apparently the better choice for all 1996-1999 two cylinder engines is the Hurricane update kit 2873022

2873091 1996-1998 three cylinder 900cc and 1050cc engines

2873356 1999 1050cc three cylinder engines only

Each kit includes an updated new CDI module and a new magneto stator.

For the two cylinder engines a new Ignition Coil and spark plug wires are included. Three cylinder update kits reuse the original ignition coil pack.

You can check whether you already have the update by checking your CDI part number.

Update Kit installation tips

There will be a couple of electrical box wiring changes, including delete of the thin Black battery ground wire.

Not part of the update kit itself, but recommended anyway, is to change the CDI power feed to come from the LR module Orange output. See Service Bulletin PWC-00-05.

After installing the stator and running the cable into the electrical box, but before connecting it to the terminal board, verify that you have zero ohms measured from the new Black stator wire back to the engine block. That Black stator wire is the only connection between the electrical box ground and the engine block ground, so it must be good.

Other notes

CDI part number 4010885, may actually be 4010447 (900 & 1050 Ignition Update Kit 2873091)

Parts interchanging

Note: Polaris changed the design of the stator housing cable exit hole circa 1999, so one of the reasons for the different stator models and update part numbers is so the replacement stator can directly fit into the original magneto housing you have.

If you are mixing and matching stators and engines from different years, these part numbers will help you get the right combo to physically fit the housing and the stator cable seal.

To utilize newer stators with 8 or 12 Pin Connectors on the outside of the electrical box with a pre-2000 electrical box;

For the three cylinder engines, 2460875 is the short adapter cable that runs between the 12-pin stator cable plug and the electrical box insides (must use 4010170 stator, which has the mating 12-pin connector Deutsch DTM04-12P with 9 wires)

For the two cylinder engines, 2460718 is the short adapter cable that runs between the 8-pin stator cable plug and the electrical box insides (must use 4010172 stator, which has the mating 8-pin connector)

Info gleaned from Jay's old posting over here

Gen III ignition system diagnostics

Once you install the ignition update kit, you now have a Gen III ignition system and therefore must use 2000 and later Service Manual specs when diagnosing the ignition system and stator coils.

How do I tell whether I have an updated or original type domestic ignition?

What does a non-updated two cylinder Ignition coil look like?

How do I test old and new domestic red engine CDI, Magneto and Ignition coils?

Ignition System Upgrade Kit installation - Remove or cut & tape the thin Black ground wire between electrical box and battery negative

My ohm-meter measurements don't exactly agree with the service manual specifications. Is this OK?

Note: PVL (Probosch-Vogt-Loos GmbH) is the company that manufactured the ignition and stator system for Polaris domestic carburetor engines.

How to remove the flywheel and magneto stator

Installing the flywheel

Apply red Loctite 271 or 262 on the shaft taper. Make sure the woodruff key is in place and in good condition.

The taper on crank shaft and inside of flywheel must be a perfect fit before applying Loctite. No dings or gouges.

Use Loctite 242 on the nut threads.

Tighten to 90 ft-lbs torque on flywheel nut (14mm x 1.25 thread)

There are several versions of the domestic engine flywheel.

Original stock domestic engine flywheel is 4010189, and there is the 4010569 'high start' flywheel.

Do not use the 4010569 'High Start' flywheel without using a CDI programmed to match

'High-start' flywheels have ten degrees more base timing, and CDI base timing must match flywheel base timing

Octanes came with both flywheel versions, and different CDI versions to match the flywheels ... 2002 flywheel PN ???

Replace gray Tempo brand fuel lines

The Tempo fuel hose degrades internally, and can gum up the carbs with greenish gooFrom about 1994-2002, the factory installed gray Tempo brand fuel hose that chemically reacts where it connects to metal fittings, creating a greenish or bluish goo inside the hose that clogs the fuel system and carburetors, causing lean fuel delivery and burned pistons. The outside of the Tempo fuel line can look and feel just fine.Often associated with SeaDoo PWC, the same Tempo hoses were also used on Polaris and Yamaha PWC.Where can I get replacement fuel and oil hose?Depending on the model you have you will need maybe 20 feet of fuel line.Marine rated fuel line, that is compatible with Ethanol, is preferredUSCG TYPE B1 SAE J1527 NMMA TYPE ACCEPTED (ISO 7840)J1527 A1 is also acceptable, and the A1 hose has a fire resistant outer coatingSAE J1527 Type B2 (and A2) is for fuel tank vent hoses only, do not use B2/A2 for fuel lines unless it is also B1/A1 rated. From what I can tell, the current version of these marine fuel hose ratings is for up to E10 (Gasoline with up to 10% Ethanol blend)Be sure the hose you use for the pulse line is stiff enough not to collapse under suctionAlso applies to the fuel lines from tank to fuel pump, which are also under suction

The OEM Polaris two position On-OFF fuel selector valve is 7052159, costs a little over $20 new.

If you don't replace the entire valve, then clean the old valve, and replace/lubricate the O-ring seal inside.

Clean and rebuild the carburetors, especially if you had the gray Tempo fuel lines.

Even if you didn't, carbs that are old or have been sitting for a long time can become gummed up internally. A single clogged carb can damage the engine quickly

Does your 1999 or later model have an external start solenoid (mounted outside the electrical box)?Is it the original Black solenoid with metal backing plate? If so, update that solenoid before it fails

Checking engine temperatures using your hand

How to loosen PTO coupler using rope inside the cylinder (works for flywheels too)

aka the 'rope trick'

Printable Engine Degree Wheel

How to measure piston ring end gaps

Enhanced cooling of domestic stator on carburetor engines

Note: Useful for highly tuned and high output domestic non-stock engines to keep the magneto stator cooler on domestic engines

Engine removal and Installation guides

Polaris 1200 (1165cc) with carburetors

Polaris 900 and 1050cc, with carburetors

Polaris 700 twin cylinder, with carburetors

Polaris 1200 (1165cc) with Ficht Fuel Injection

Domestic engine rebuilding

Engine rebuilding overview, tips

There are several variations for the Mag and PTO crank shaft sealsA recommended upgrade for all 1996-2000 red domestic engines is to use the double rear PTO crank shaft seal arrangement, which was the factory method on 2001-2004 domestic engines. The two rear seals are installed without a rear snap ring, and replace the single more expensive 5411524 (SEAL, TYPE BA SL). Note: MAG crank seal always has a snap ring (two on the MSX 140 crank).Genuine Polaris OEM crank seals are recommended for best fit and seal longevity, even if they cost more.

Two 5412091 (Seal, Flange - 2004, some 2003) or 5411937 (2001-2003) [SEAL-FLANGE 35X72X7,SS SPRG] for the rear.

Apparently the crank bearings used on SBT domestic crank shaft rebuilds are slightly wider than Polaris OEM crank bearings, which causes an interference problem with the rubber 'tabs' or nubs on the double crank seals. SBT recommends trimming these tabs off the inner seal to accommodate the non-OEM bearing width when using SBT crankshaft and SBT double rear crank seals.Older style SBT single rear crank seal is here.Polaris crank bearing replacement sources6207 and 6307 bearings are used in many Polaris watercraft 2-stroke engines and are somewhat unique. In the case of the Fuji engine, the 6207 is pinned and the 6307 is pinned and also has a snap ring. The pin is used to keep the outer race from spinning in the case.You can use the unpinned bearing instead of OEM but also use Loctite 680 Green on the outer race to secure them.

6207 Bearing
