Autonomous Driving
Autonomous Driving System
Software : ROS
Function : path tracking, safety control
Controller : longitudinal and lateral control
- (goal) Kinematics-based desired acceleration
- (goal) Model-free steering controller
Longitudinal controller
Software : Matlab/Simulink + CarMaker
Target motion : virtual car-following
Controller : Model-free adaptive feedback controller (MF-AFC)
: Using gradient-descent method
: Sliding mode control algorithm

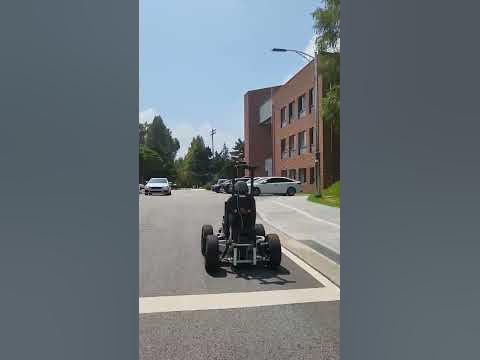

Test Platform for Research on Autonomous Driving
Specifications
Mass : about 300 kg
Size : about 1,600 mm x 1,160 mm x 550 mm
Velocity : ~ 20 kph (max. 40 kph)
Environment sensors for autonomous driving (to be installed later)
Lidar(Sick)
Camera(Microsoft webcam)
Autonomous Truck using 1-Layer Laser Scanner
1-Layer laser scanner based object detection
LDS lidar for object detection
Detection range : 10 ~ 3,500 mm
Field of view : 360 deg
Angular resolution : 1 deg
Scanning frequency : 5 Hz
Object tracking control using two-wheel driving module based on independent speed control
Two wheel driving module
Motor : brushless DC motor
Input voltage : 24 V
Rear wheel : free rotational wheel w.r.t z-axis
Maximum speed(longitudinal) : 1.5 m/s
Longitudinal and curved path following
Longitudinal and curved path following at night
Curved path following at night
Fail-Safe System for Autonomous Driving
Fail-Safe System
- Perception
Fault reconstruction / detection / isolation
- Decision
Safe / warning / emergency
- Control
Tolerant control / emergency parking
