In the past, before the invention of television or the Internet, people used to see the world through a Raree show box that was carried by a man who roamed the streets, showing passersby pictures from around the world and telling them stories about those places.
The table had a many photos when it is rotating the photos moves from its places and you can see the photos individualy through a hole on the outer body

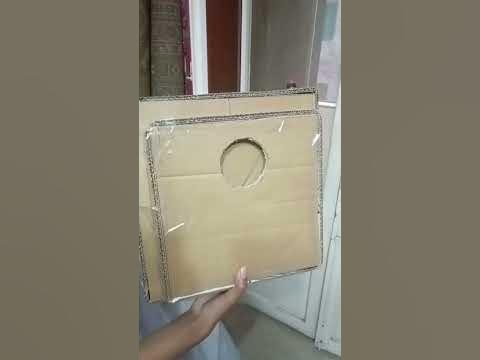

like the photo below.
Construction Parts
Mainly it will be from wood panels 2.5 design for the base body and the rotating panel it will be designed using fusion 360 and cutting on laser machine.
Input
(Sensing, Tactile Input, and/or Graphical Input)
It will be a tactile input by a push button
By clicking on push button the motor will rotate a one step.
Action
(Physical and/or Graphic)
It will be rotary motion by by a stepper motor
the motor will rotate and make the circle panel rotating.
Brain
Arduino UNO to control inputs and actions
Power Management
1x 5V power supply
Push button
Arduino
Minimum Features: are the least amount of features that would demonstrate the coverage of all the technical modules and their complete integration
Complete Features: are the set of features that will complete your original project objective and vision
Nice-to-have Features: are the extra set of features that will make the project cooler, yet they need extra time, effort, and/or resources to finish
Minimum User Features
A turntable rotating when user press on a button
Action: Stepper motor rotate so a rounded panel will rotate to movee the picture.
Sensing: none
User Input: Push button
Complete User Features
Action: A light will be open.
Sensing: none
User Input: ON/OFF Switch
Nice-to-have User Features
Action: A music will be played
Sensing: none
User Input: ON/OFF Switch
Task
Sub-Tasks
From:
To:
Design
-Designing the enclosuer.
-Designing the turntable.
15-2-2024
19-2-2024
Fabrication
-Cutting the enclouser and the turntable
on the laser machine
19-2-2024
23-2-2024
Programming and wireing
-Design the circuit on tinkercad
-Wiring a phsiycal circuit
-write the code
21-2-2024
28-2-2024
Component/Material
Amount
Link
Stepper motor
1
http://tinyurl.com/5n6j948r
Push button
1
http://tinyurl.com/2yfbjdtn
on-off switch
2
http://tinyurl.com/zd53aazd
Speaker (mp3 module)
1
http://tinyurl.com/3fd92mc4
1
https://makerselectronics.com/product/ws2812-5050-rgb-led-driver-module-board-8-led
Driver for stepper motor
1
http://tinyurl.com/bdhe6v74
Arduino Uno
1
http://tinyurl.com/yc3uwac2
Breadboard
1
http://tinyurl.com/5aezcumt
Jumper Wires
1
http://tinyurl.com/46kz4zmx
9V Adapter
1
http://tinyurl.com/mjtcxfu4
