Archie’s Law: Fundamentals & Application in Reservoir Evaluation

Archie’s Law is a fundamental equation in petrophysics that relates the electrical properties of rocks to their fluid saturation. It is widely used in the oil and gas industry to estimate water saturation (Sw) in porous rock formations based on resistivity measurements.

Ohm’s Law and Its Relation to Archie’s Law

To understand Archie’s Law, it's essential to first grasp Ohm’s Law, which governs electrical conductivity and resistivity—key factors in determining fluid saturation in reservoir rocks.

Ohm’s Law: Basics of Electrical Flow

Ohm’s Law defines the relationship between voltage, current, and resistance in an electrical circuit:

ΔV = I r

where:

ΔV = Potential difference (voltage) [V]
I = Electric current [A]
r = Electrical resistance [Ω]

Definition of Resistivity

Since resistance (r) depends on the size of the material, we use resistivity (R), which is a material-specific property:

R=r(A/L)

where:

R = Resistivity [Ω·m]
A= Cross-sectional area [m²]
L= Length of the material [m]

Resistivity vs. Resistance

Resistance (r) is an extensive property → depends on size (larger sample = higher resistance).
Resistivity (R) is an intensive property → independent of size (a material-specific characteristic).

Electrical Flow and Conductivity

The equation for the flow of electrical charges in a material is:

ΔV=IRL/A

Since conductivity (C) is the inverse of resistivity:

C=1/R

We can substitute this into the above equation:

I=CAΔV/L

Darcy’s Law (Fluid Flow in Porous Media)

This equation is similar in form to Darcy’s Law, which governs fluid flow in porous rocks:

q=kAΔP/μL

where:

q= Flow rate of fluid
k= Permeability (ability of rock to allow fluid flow)
μ = Fluid viscosity
ΔP = Pressure difference

Key Analogy Between Electrical and Fluid Flow

Electrical current (I) ↔ Fluid flow rate (q)
Potential difference (ΔV) ↔ Pressure difference (ΔP)
Conductivity (C) ↔ Permeability (k)

This analogy helps explain why resistivity measurements can be used to analyze fluid movement in porous rocks, forming the basis of Archie’s Law.

Application in Reservoir Engineering

Resistivity logs measure the rock’s resistance to electrical current.
Since fluids conduct electricity differently (brine > oil > gas), resistivity logs help differentiate water- vs. hydrocarbon-filled formations.
Archie’s Law then translates resistivity data into water saturation estimates, critical for oil and gas exploration.

Key Components of Archie’s Law

Archie’s Law is composed of two key equations:
A. Formation Factor (F)

F=Rw/Ro

where:

F = Formation factor (dimensionless)
Ro = Resistivity of rock when 100% saturated with water (Sw=1)
Rw = Resistivity of formation water (brine)

Key Components of Archie’s Law

The formation factor can also be expressed as:

F=a x ϕ^-m

where:

ϕ = Porosity (fraction)

a = Empirical constant (typically close to 1)

m = Cementation exponent (typically around 2, varies with rock type)

Schematic showing the formation factor as a function of porosity for two rock types by plotting (a) F and 𝜙 on a log-log scale and (b) log F and log 𝜙 on a linear scale.
The cementation exponent m can be found using a power trend line and a linear trend line for a and b, respectively. Each data point for each rock type represents a measurement conducted on one core sample

Resistivity Index and Its Role in Fluid Saturation Estimation

The Resistivity Index (Ir), also called the Saturation Index, is a crucial parameter in petrophysics that helps determine fluid saturation in reservoir rocks. It provides a relationship between a rock's resistivity when partially saturated with water and when it is completely saturated with water.

Resistivity Index

Resistivity Index is mathematically defined as:

Ir= Rt/Ro

where:

Ir = Resistivity Index (dimensionless)
Rt = True resistivity of the rock when it contains both water and hydrocarbons(Ω.m )
Ro = Resistivity of the rock when it is 100% water-saturated(Ω.m )

Graphical Representation of Resistivity Index

A plot of Resistivity Index (Ir) vs. Water Saturation (Sw) is typically displayed on a log-log scale:

log⁡Ir=−nlog⁡Sw

The slope of the line gives the saturation exponent n
A higher slope (greater n) indicates a more cemented and less conductive rock.

The saturation exponent n can be found using a power trend line and a linear trend line for a and b, respectively.

From experimental observations, Archie introduced an empirical relationship between resistivity index and water saturation (Sw):

Ir=Rt/Ro=Sw^-n

where:

Sw = Water saturation (fraction of pore space filled with water)
n= Saturation exponent (typically between 1.8 to 2.2 for clean sandstones, but varies with rock type)

This equation shows that as water saturation decreases, the resistivity index increases, indicating the presence of hydrocarbons.

Interpretation of Resistivity Index

If Ir=1, then Rt=Ro → 100% water saturation (no hydrocarbons).
If Ir>1, then Rt>Ro → Hydrocarbons are present, increasing resistivity.
Higher Ir values correspond to more hydrocarbon saturation in the rock.

This principle is used in wireline logging to estimate oil and gas saturation in a reservoir.

Sw=(aRw/ϕ ^mRt)^1/n

where:

Sw = Water saturation (fraction of pore space filled with water)

Rt = True resistivity of the formation (measured from logs)

n = Saturation exponent (typically 2; varies with rock type)

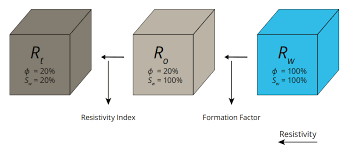

Schematic showing the two components of Archie’s law: formation factor and resistivity index. Formation factor is a relationship between 𝑅𝑜 and 𝑅𝑤, while resistivity index is a relationship between 𝑅𝑡 and 𝑅𝑜. 𝑅𝑜 is the common parameter between the two components .

Physical Interpretation of Archie’s Law

High resistivity (Rt) → Lower water saturation (Sw) → More hydrocarbons.
Low resistivity (Rt) → Higher water saturation (Sw) → Water-bearing formation.
Porosity Effect (ϕ): Higher porosity allows more conductive water, lowering resistivity.
Cementation Factor (m): Higher values indicate tighter rock with poor connectivity, leading to higher resistivity.

Limitations of Archie’s Law

Assumes a clean formation (no clays).
Assumes all electrical conductivity occurs through water-filled pores (not applicable to shaly sands).
Empirical constants (a,m,n) must be determined experimentally for different rock types.

Practical Applications

Reservoir Evaluation: Used to estimate water saturation and determine hydrocarbon potential.
Log Interpretation: Helps analyze resistivity logs to differentiate between oil, gas, and water zones.
Reservoir Simulation: Input for fluid flow models predicting production behavior.

Summary

✅ Archie’s Law is widely used in petrophysics to determine water saturation from resistivity logs.
✅ It provides critical insights into reservoir hydrocarbon content.
✅ Requires empirical calibration for different rock types.
✅ Must be modified for shaly formations to account for additional conductivity.
