Lecture 3
Design and Make a Multi-Part Object
Design and Make a Multi-Part Object
Get a Design: Open-source Platforms - CAD Software - Reverse Engineering - Artificial Intelligence (AI)
Select the Material: Cardboard - Clay - Wood - Acrylic - Polymer - Metal - ...etc.
Pick the Tool:
Manual Tools: Scissors, pliers, hammers, electric drills, jig saws, angle grinders, sanders, ...etc.
Traditional Machines: Lathe - Milling M/C - Drilling M/C - Bending M/C - ...etc.
Digital Fabrication M/Cs: Laser Cutter - 3D Printer - Vinyl Cutter - CNC M/Cs
Assembly Walkthrough
Components / Coloring
Multi-Sketch Dilema
Design a Multi-Part Object

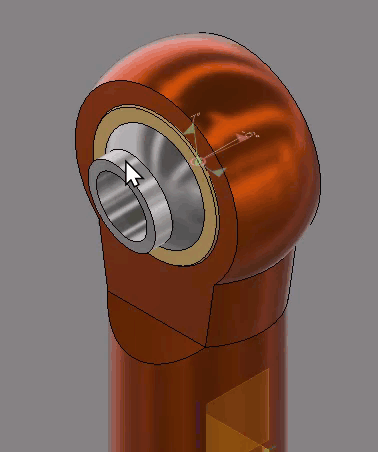

Assembly (Modeling vs Reality)
Creating Cross-sections for Inspection
Collision Detection
Why do we care ? Check this out
Types
Permanent / Fixed Joints
Adhesive joint: Super glue, hot glue, white glue, epoxy, double-sided tape, ... etc
Detachable Joints
Laser Cutting Rules

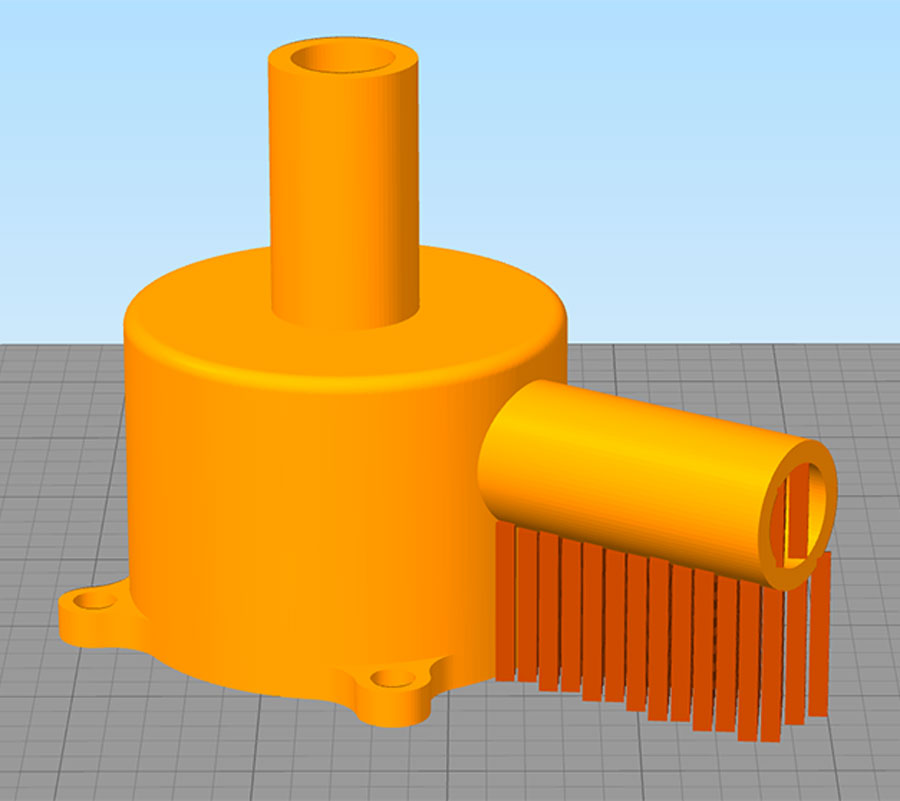

3D Printing Rules
General Rules
Sharp vs round edges
Standard components (screws, bolts, nuts, bearings, ...)
Fragile or thin connections
Material flexibility & springiness
Aesthetic considerations
Assembly (simplicity, minimum no. tools)
Test and iterate to fine-tune tolerances (Try-and-error)
Explore More Tutorials, Tools, and Techniques:
