vert=[1 0 0;-1 0 0;0 1 0;0 -1 0;0 0 1;0 0 -1];
face=[3 5 2;5 3 1;6 3 2;3 6 1;4 5 1;5 4 2;4 6 2;6 4 1];
One color for complete patch
patch('faces',face,'vertices',vert,'facecolor',[0 0 1]); %only blue color
|
|
One color per face
colors=hsv(length(face));
patch('faces',face,'vertices',vert,'facecolor','flat','facevertexcdata',colors);
|
|
One color per vertex
colors=hsv(length(vert));
patch('faces',face,'vertices',vert,'facecolor','flat','facevertexcdata',colors);
|
|
Interpolated color
colors=hsv(length(face));
patch('faces',face,'vertices',vert,'facecolor','interp','facevertexcdata',colors);
|
|
Indexed color
patch('faces',face,'vertices',vert,'facecolor','flat','Cdata',1:8);
colormap(copper(8))
|
|
Some polyhedron and their vertex,face and edge data.Face List has index of vertex list.By connecting vertex in this order we will get a face of that particular polyhedron. For example first row of face list for cube has [1 2 3 4] it means if we connect vertex number 1,2,3 and 4 then we will get one face of cube.By connecting complete array in the specified sequence we will get a complete cube.
Edge List has index of vertex list.By connecting vertex in this order we will get an edge of that particular polyhedron.For example first row of edge list for cube has [1 2 ] it means if we
connect vertex number 1 and 2then we will get one edge of cube.
Some polyhedron images are shown with their edges only and some with their faces.Click on the link below each image to download complete data in single file.
Polyhedron
|
Vertex List
|
Face List
|
Edge List
|
Cube
|
vert=[1 1 1
1 1 -1
1 -1 1
1 -1 -1
-1 1 1
-1 1 -1
-1 -1 1
-1 -1 -1]; |
face=[1 2 4 3
1 5 6 2
5 6 8 7
7 8 4 3
1 3 7 5
2 4 8 6]; |
edge=[ 1 2
1 3
1 5
2 4
2 6
3 4
3 7
4 8
5 6
5 7
6 8
7 8]; |
Tetrahedron
tetrahedronData.zip
|
vert=[1 1 1
-1 -1 1
-1 1 -1
1 -1 -1]; |
face=[1 2 3
2 3 4
1 3 4
1 2 4]; |
edge=[1 2
1 3
1 4
2 3
2 4
3 4];
|
Octahedron
octahedronData.zip
|
vert=[1 0 0
-1 0 0
0 1 0
0 -1 0
0 0 1
0 0 -1];
|
face=[3 5 2
5 3 1
6 3 2
3 6 1
4 5 1
5 4 2
4 6 2
6 4 1];
|
edge=[1 3
1 4
1 5
1 6
2 3
2 4
2 5
2 6
3 5
3 6
4 5
4 6]; |
Icosahedron
icosahedronData.zip
|
|
|
|
Dodecahedron
dodecahedronData.zip
|
|
|
|
Rhombic Triacontahedron
|
|
|
|
Rhombicosidodecahedron
|
|
|
|
Icosidodecahedron
icosidodecahedronData.zip
|
|
|
|
Rhombododecahedron
rhombododecahedronData.zip
|
vert = [0 0 2
1 -1 1
1 1 1
-1 1 1
-1 -1 1
2 0 0
0 2 0
-2 0 0
0 -2 0
1 -1 -1
1 1 -1
-1 1 -1
-1 -1 -1
0 0 -2];
|
face=[ 2 1 3 6
9 5 1 2
3 1 4 7
4 1 5 8
9 2 6 10
6 3 7 11
7 4 8 12
8 5 9 13
10 6 11 14
14 11 7 12
14 12 8 13
13 9 10 14 ]; |
|
Truncated Icosahedron or Buckyball
buckyballData.zip
|
|
|
|
Square Antiprism
|
vert=[0 1 1
-1 0 1
0 -1 1
1 0 1
-0.7071 0.7071 0
-0.7071 -0.7071 0
0.7071 -0.7071 0
0.7071 0.7071 0]; |
face1=[1 2 5
1 4 8
1 5 8
2 3 6
2 5 6
3 4 7
3 6 7
4 7 8];
face2=[ 3 2 1 4
6 7 8 5]; |
edge=[1 2
1 4
1 5
1 8
2 3
2 5
2 6
3 4
3 6
3 7
4 7
4 8
5 6
5 8
6 7
7 8]; |
Cuboctahedron
|
vert=[-1 1 0
-1 0 1
-1 -1 0
-1 0 -1
0 1 -1
0 -1 -1
1 0 -1
1 -1 0
1 0 1
1 1 0
0 1 1
0 -1 1];
|
face1=[1 2 11
1 4 5
2 3 12
3 4 6
5 7 10
6 7 8
8 9 12
9 10 11];
face2=[1 2 3 4
10 11 1 5
12 2 11 9
3 12 8 6
6 7 5 4
8 9 10 7];
|
|
Truncated Dodecahedron
truncateddodecahedronData.zip
|
|
|
|

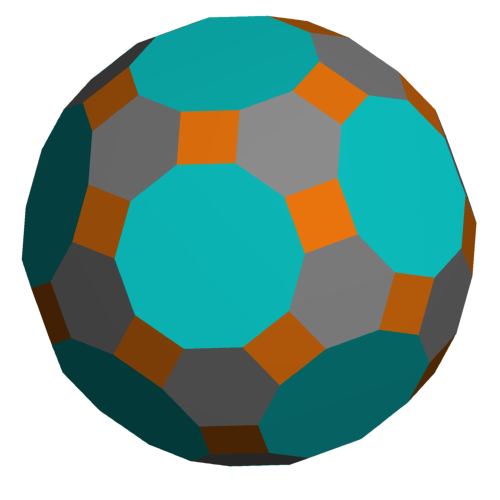

Truncated Icosidodecahedron
truncatedicosidodecahedronData.zip
|
|
|
|
Snub Cube
snubcubeData.zip
|
|
|
|
|
|
