WiFi Weather Station HP1000










Solar Powered Wireless Weather Station

with WiFi Connection








 (Full Color TFT 7" Display)










       Functions:




1.TFT color display
2.Time display, including Hour, Minutes, Date
3.Automatic daylight saving time function.
4.Weather Symbols
5.Indoor air humidity/temperature measure and display.
6.Outdoor air humidity/temperature receiving and display.
7.Wind speed and wind direction display
8.Wind chill and Dew point temperature display
9.Rainfall data in 1hour, 24hours, one week, one month and toal since last reset
10.Barometric pressure display
11.High/low alarm
12.Records of all minimum and maximum values along with time and date of their recordings.
13.UV Index
14.Lux Meter (solar power index)
15.SD card memory slot
16.Wifi connection
17. Upload weather data to www.wunderground.com automatically

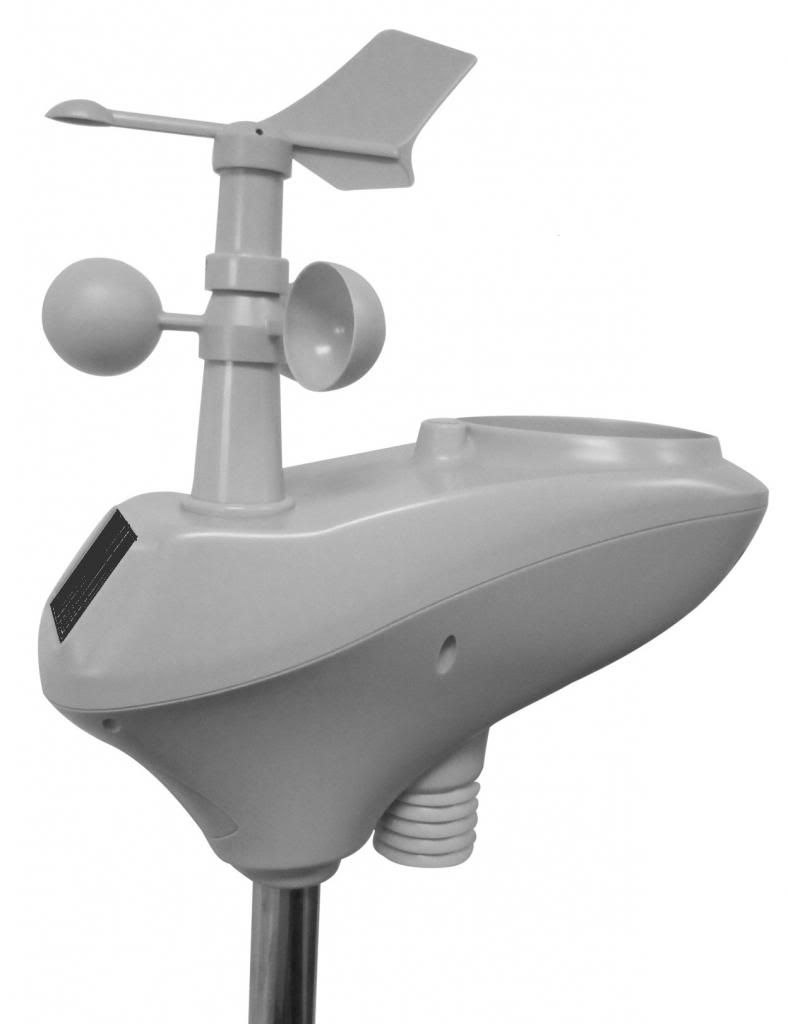

(Outdoor Unit)







  Specifications:




1) Outdoor temperature Range: -40.0°C to + 60.0°C (-40°F to +140°F; Resolution: 0.1°C; Accuracy: +/- 1 °C

2) Indoor temperature  Range: 0°C to + 50.0°C (32°F to +122°F); Resolution: 0.1°C

3) Humidity range: 1% to 99% (1% resolution)

4) Rain volume display: 0 - 9999mm (show --- if outside range);  Resolution : 0.3mm (if rain volume < 1000mm); 1mm (if rain volume > 1000mm);  Accuracy: +/- 10%

5) Wind speed: 0~50m/s (1-100 mph, show --- if outside range); Accuracy: +/- 1m/s (wind speed <3 m/s)  +/- 10% (wind speed > 3m/s)

6) Light: 0-400 Lux; Accuracy +/-15%

7) Measuring range air pressure: 300-1100hPa (8.85 - 32.5inHg); Accuracy: +/-3mPa under 700-1100 mPa; Resolution: 0.1hPa (0.01inHg)

8) Alarm duration : 120 sec

9) Transmission range up to 100m (330 feet)

10) Measuring interval: 16 seconds (outdoor sensors) 64 seconds (indoor sensors)

11) Power consumption:

a) Base Station: 5V DC power adapter (included)

b) Indoor sensor: 2 x AAA alkaline batteries (not included)

b) Remote Sensor:  Solar panel with 3 x AA rechargeable alkaline batteries (included)

10) Transmission frequency: 433MHz

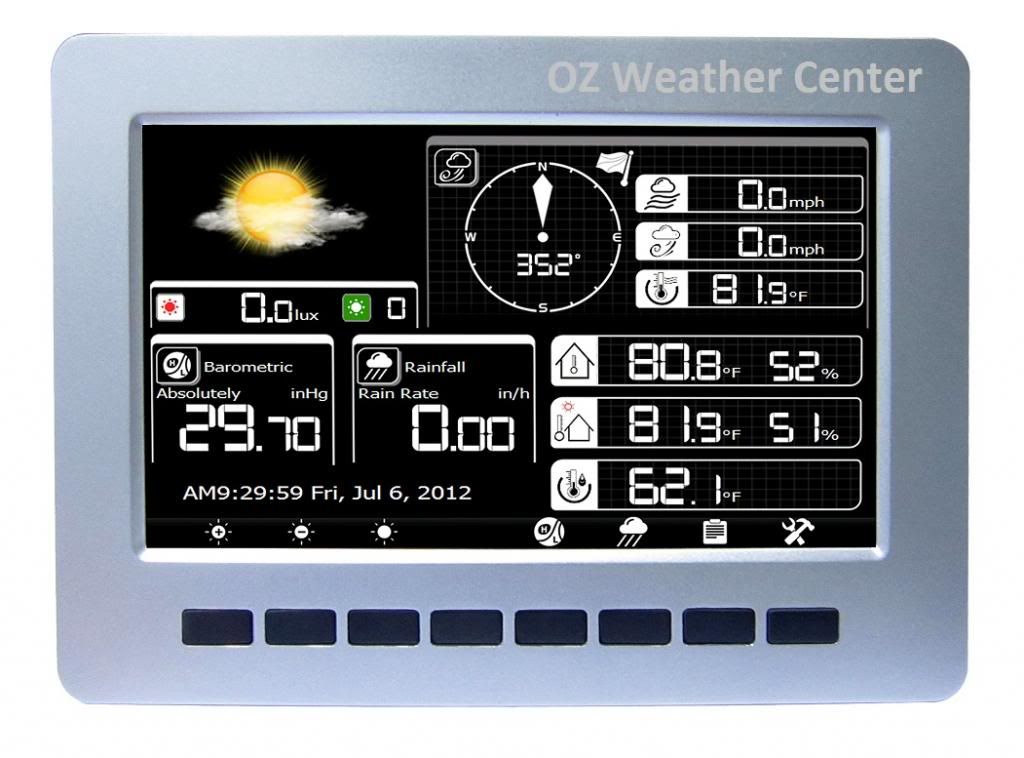

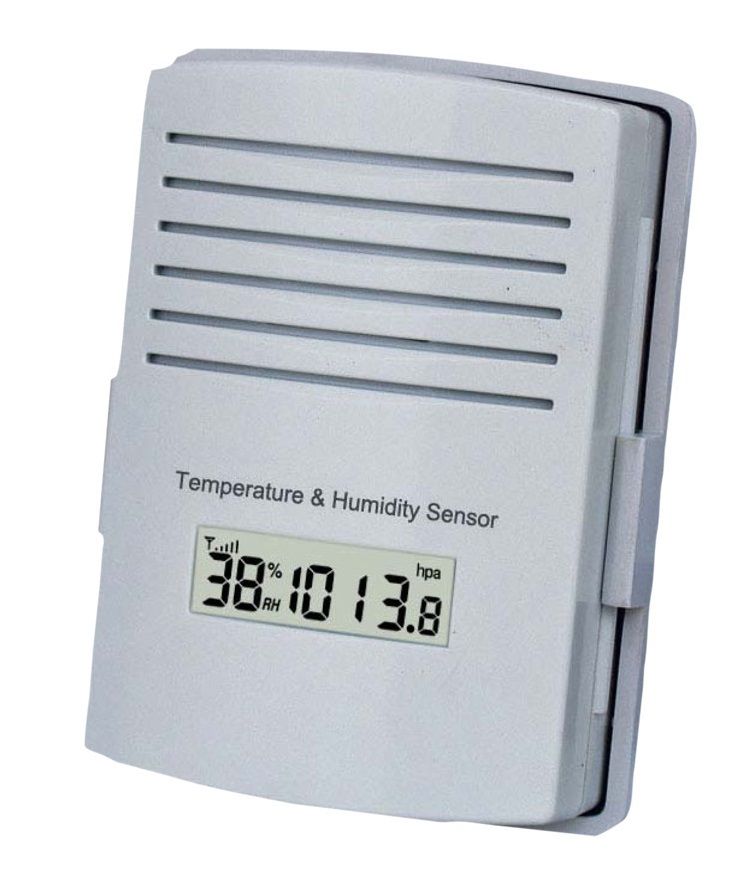

(Indoor Sensor)

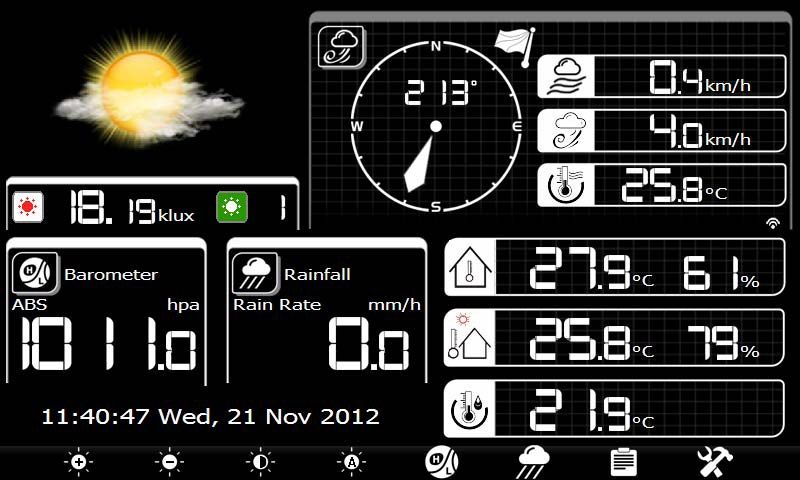

       Normal Display Mode:

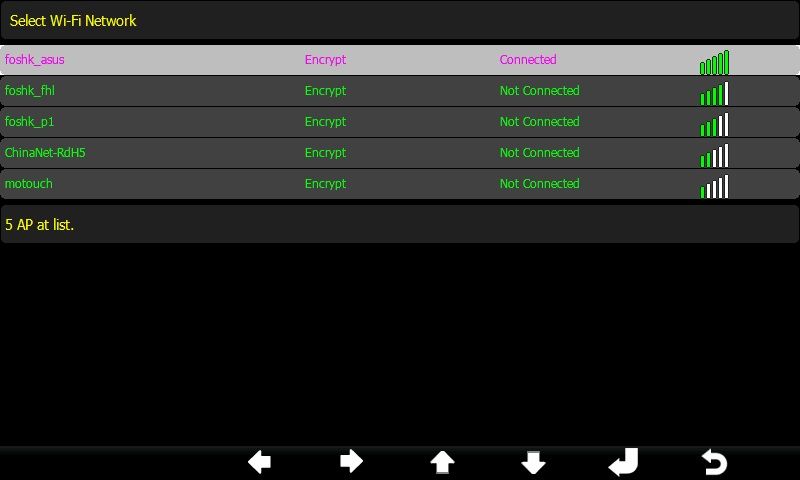

    WiFi Scan:

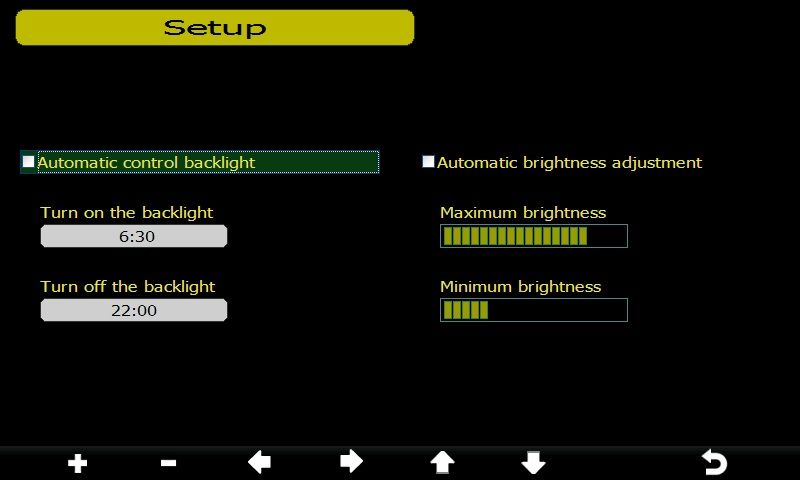

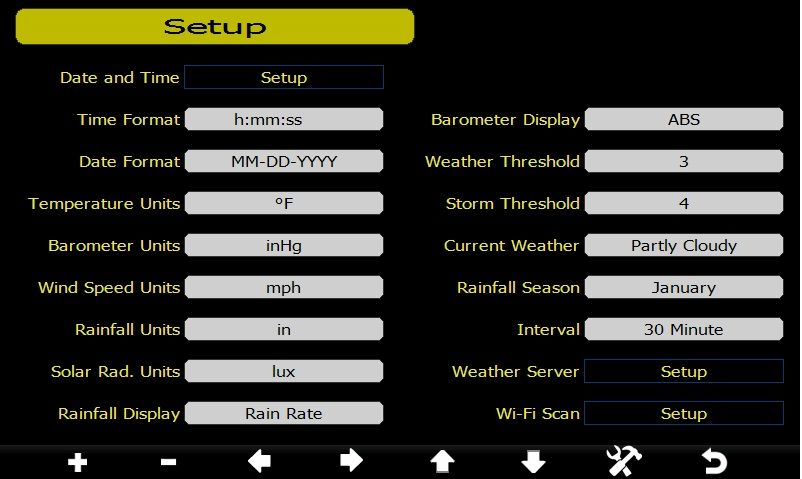

     Set Up Mode:



    Set Up Mode:







   Set Up Mode:

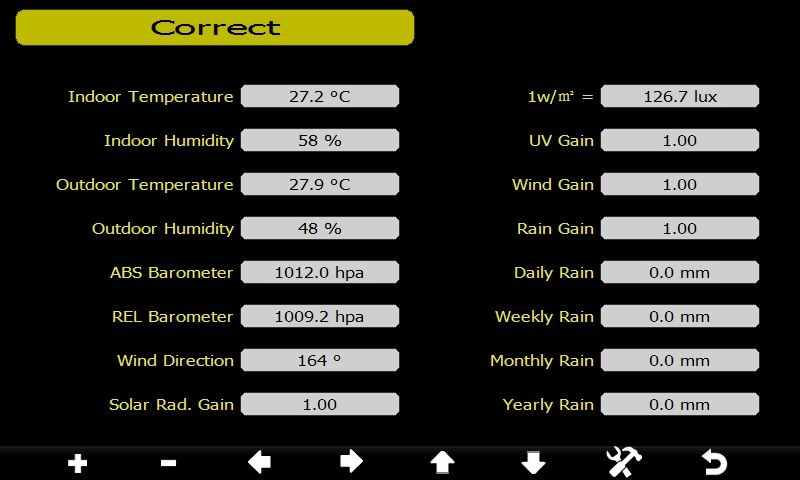

   Calibration Mode:

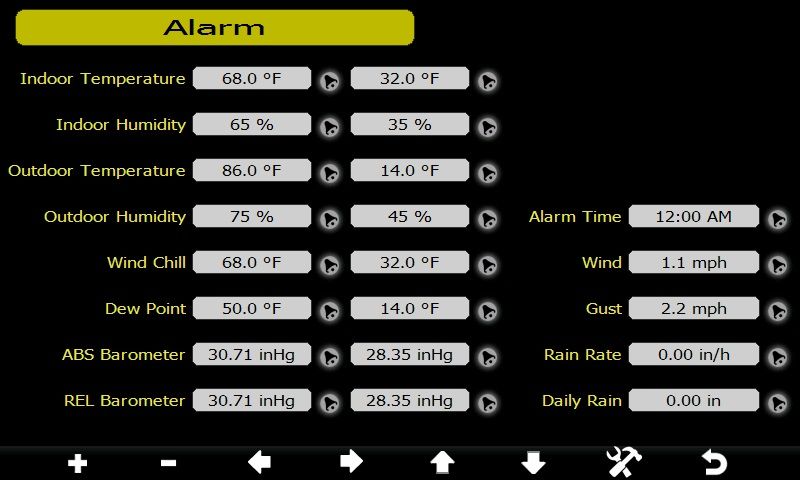

   Alarm Setting Mode:

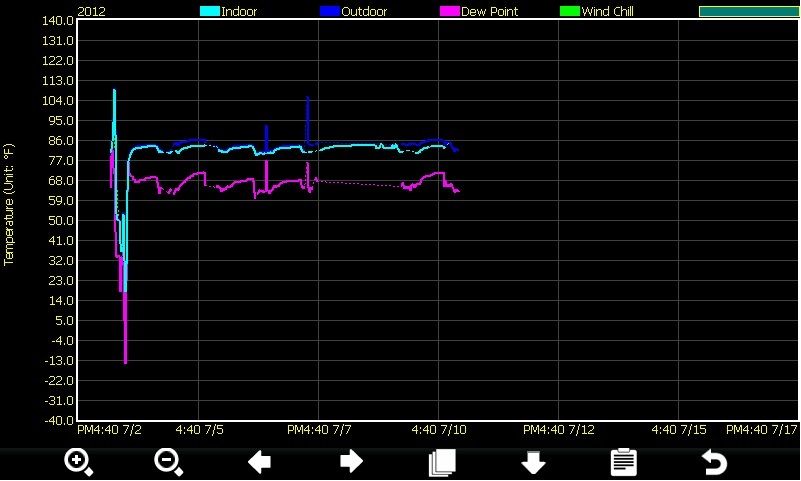

   History Graph Mode:
