Aircraft Parking Bays


Aircraft Parking Area, also known as airport apron, is the area of an airport where the aircrafts are parked, loaded, unloaded, refueled or boarded. It is a restricted area where access is controlled, there are 6 types of apron namely Simple, Linear, Curvilinear, Open, Pier and Satellite.

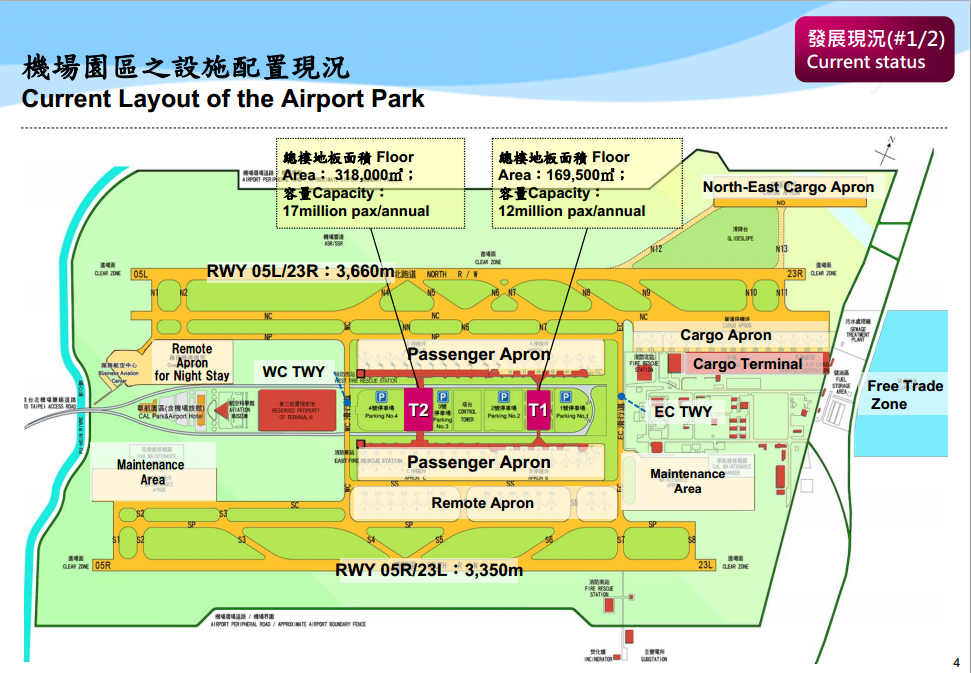

Taoyuan International Airport adopts the concept of:

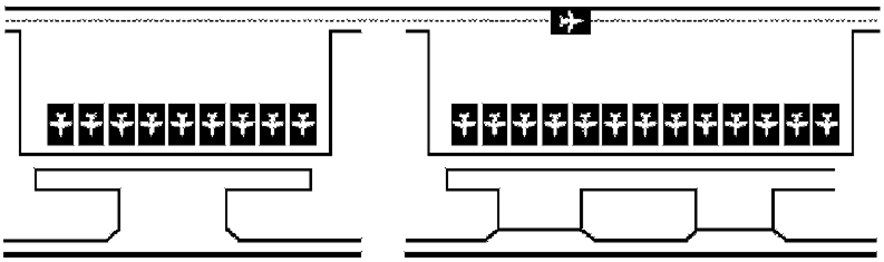

LINEAR

Advantages:

  1. Offers ease of access and short walking distances for passengers from the transit area to the aircraft contact gates

  2. Terminal can be expanded further by extending the current terminal linearly or developing another linear terminal with connectors

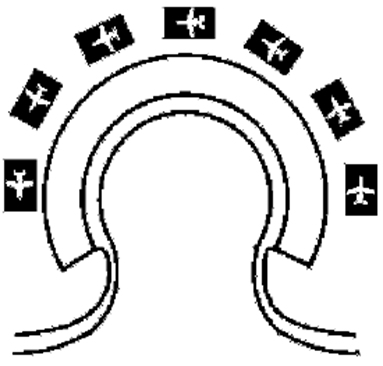

CURVILINEAR

Advantages:

  1. Simple organisational principles

  2. Allows future expansion of terminal

  3. Allow more aircraft to park "nose-in" to the terminal building while maintaining short walking distances from the airport entrance to the aircraft gate



    APRON A


    Bay Number

    Max ACFT Type

    Reference Code

    A1

    A300

    D

    A2

    B744

    E

    A3

    A330

    D

    A4

    B744

    E

    A5

    B744

    E

    A6

    B744

    E

    A7

    B744

    E

    A8

    B744

    E

    A9

    B744

    E



    APRON B


    Bay Number

    Max ACFT Type

    Reference Code

    B1

    A300

    D

    B2

    B744

    E

    B3

    A330

    D

    B4

    B744

    E

    B5

    B744

    E

    B6

    B744

    E

    B7

    B744

    E

    B8

    B744

    E

    B9

    B744

    E



    APRON C


    Bay Number

    Max ACFT Type

    Reference Code

    C1

    B744

    E

    C2

    A380

    F

    C3

    B744

    E

    C4

    B744

    E

    C5

    B744

    E

    C6

    B744

    E

    C7

    B744

    E

    C8

    B744

    E

    C9

    B744

    E

    C10

    A330

    D



    CARGO APRON


    Bay Number

    Max ACFT Type

    Reference Code

    501

    B744

    E

    502

    B744

    E

    503

    B744

    E

    504

    B744

    E

    505

    B744

    E

    506

    MD11

    D

    507

    B748

    E

    508

    MD11

    D

    509

    B744

    E

    510

    MD11

    D

    511

    B744

    E

    512

    MD11

    D

    513

    B748

    E

    514

    B744

    E

    515

    B748

    E

    516

    B748

    E

    517

    B748

    E

    518

    B748

    E

    519

    B748

    E

    520

    B748

    E

    521

    B748

    E

    522

    A380

    F

    523

    A380

    F

    524

    A380

    F

    525

    B748

    E



    REMOTE-PARKING APRON


    Bay Number

    Max ACFT Type

    Reference Code

    601

    A330

    D

    602

    A330

    D

    603

    A380

    F

    604

    A380

    F

    605

    B744

    E

    606

    B744

    E

    607

    A380

    F

    608

    B744

    E

    609

    B763

    D

    610

    B763

    D

    611

    B744

    E

    612

    B744

    E

    613

    B744

    E

    614

    B744

    E

    615

    B763

    D




    APRON 8


    Bay Number

    Max ACFT Type

    Reference Code

    801

    B744

    E

    802

    A380

    F

    803

    B744

    E

    804

    B744

    E

    805

    B744

    E

    806

    B744

    E

    807

    B744

    E

    808

    B744

    E

    Total number of aprons: 5

    Total number of aircraft parking stands present: 76

    Potential bottleneck:

    1. Linear Concept Apron

    Most of the apron concept adopted by Taoyuan International Airport are linear, the disadvantages of linear apron concept becomes evident as the length of the terminal building increases. Walking distances between facilities, particularly distantly separated gates, become excessive for the passenger whose itinerary requires a change in aircraft at the airport.

    2. Training of staffs

    Another bottleneck would be training of ground staffs at the aircraft parking areas.

    Without adequate training and supervision, it may result in accidents with the probability of damage to equipment, aircraft or both. Damage in equipment may also render the gate inoperable for an undetermined amount of time and thus causing congestions while waiting for available gates, hence leading to a build-up of aircrafts.


    Solutions:
  • In order to solve the problem caused by liner concept apron, Taoyuan International Airport can adopt other concepts such as pier, satellite, open and curvilinear which would not increase the length of the terminal building.
  • Employee Training and Development, it is a program that helps employees learn specific knowledge or skills to improve performance in their current roles. This will also help in employee growth and future performance, hence this will in turn decrease the probability of an accident from happening at the aircraft parking areas.
