Annex WI-FI RDS is a powerful scripts interpreter for the popular ESP8266 WI-FI module.
The module can be managed with a dedicated WEB IDE and an associated AnnexToolKit utility suite.
Annex WI-FI RDS provides the following main functionalities:
  • Asynchronous web server based on Websockets with
  • Very fast Web Server / File Server
  • Only one TCP port required for both HTTP and Websockets

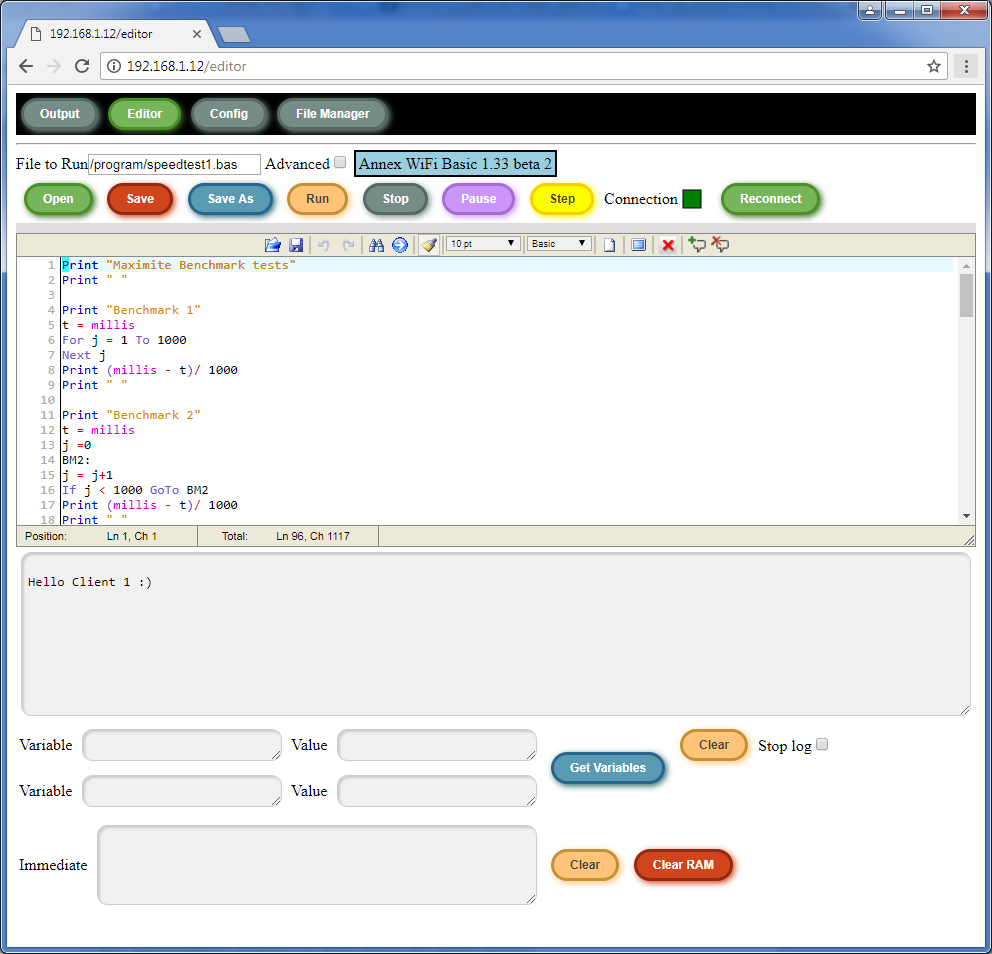

  • Integrated IDE
  • Can be programmed using your web browser (even with a phone/tablet)
  • Breakpoints, immediate execution of commands, display of variables, single step.
  • Context-sensitive help available by pressing F2 key
  • OTA update (Over the Air)
  • Powerful associated swiss-knife utility AnnexToolKit
  • Simplified flash programming of any ESP8266 module
  • Backup / restore (to/from files, to/from zip)
        SAM SPEAKER NETWORKRésultat de recherche d'images pour "download now"


Get Online Help ESP32

Basic Interpreter functionalities:
  • Floating point double precision variables
  • String variables with unlimited size
  • Multidimensional Arrays (floating points or string)
  • Asynchronous event handling
  • Error Handling
  • I/O on all available pins including PWM / SERVO
  • PID controllers
  • Frequency counters
  • Analog ADC input
  • Tone generation
  • Support for SPI and I2C
  • Support TCP and UDP protocols for communications
  • Support for sending Emails using SMTP SSL servers
  • Support for AJAX communications
  • Support for ESP-NOW communications
  • Support for MQTT communications
  • Support for FTP file transfer
  • Support IMU Fusion algorithms 6 DOF and 9 DOF (Madgwick and Mahony)
  • Strong integration with the javascript permitting exchanges between Basic script and the web browser
  • A full palette of functions / commands
  • More than 300 Commands / Functions available
  • Support for the following modules / components
    • DHT11, DHT21 or DHT22 Temperature / Humidity Sensors
    • DS18B20 Temperature sensor
    • LCD HD44780 with I2C interface module (1, 2 or 4 lines with 16 or 20 chars per line)
    • LCD Display based on chipset ST7920 with 128x64 pixels monochrome
    • OLED Display based on chipset SSD1306 or SH1106 with 128x64 pixels monochrome
    • TFT Display based on Chipset ILI9341 with 320x240 pixels and 16 bits colors
    • TM1637 4 digits 7-segments display
    • TM1638 8 digits 7-segments display including 8 leds and 8 buttons
    • MAX7219 8 digits 7-segments display
    • MAX7219 8x8 dot matrix display modules
    • Neopixel WS2812 led strips
    • Neopixel WS2812 8x8 dot matrix display
    • PCA9685 PWM/SERVO module
    • Infrared interface with many RC protocols (transmission and reception)
    • RTC module (DS1307 or DS3231)
    • HC-SR04 ultrasonic sensor for distance measurement
    • BNO055 Absolute Orientation Sensor
    • BME280 Combined humidity and pressure sensor
    • APDS9960 Digital Proximity, Ambient Light, RGB and Gesture Sensor
