    gnocl::fileChooserDialog

    A standard dialogue to choose a file.

    Synopsis

    gnocl::fileChooserDialog [-option value...]

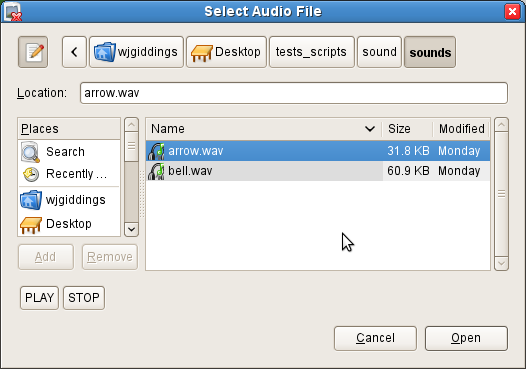

    Screenshot



    Options

    -action one of open, save, openFolder, createFolder, selectFolder  (default: open)
    Action to perform.
    -currentName string (default: "")
    Current name in the file selector, as if entered by the user. This should be used for example in a "Save as" dialogue to suggest a name.
    -currentFolder string (default: "")
    Current folder.
    -createFolders  boolean (default: 0)
    TO BE COMPLETED
    -extraWidget string (default: "")
    ID of a Gnocl widget, for extra options.
    -fileFilters string (default: "")
    List of file filter objects to be displayed within the dialog filter pull-down menu. The list comprise pairs of sequence of filter names and filetypes.
    -filename string (default: "")
    Current filename.
    -getURIs boolean (default: 0)
    Whether to return URIs instead of file names. (This is not yet tested.)
    -localOnly boolean
    Whether only local files can be chosen.
    -name string
    Name of the widget, can be used to set options in an rc file.
    -onDestroy string (default: "")
    Tcl command which is executed if the widget is destroyed. Before evaluation the following percent strings are substituted:

    %w    widget name
    -onUpdatePreview string (default: "")
    Tcl command to be executed, if the preview widget has to be updated. Before evaluation the following percent strings are substituted:

    %w    widget name
    -onConfirmOverwrite string (default: "")
    Tcl command executed when an overwrite comfirmation dialog is presented.  Before evaluation the following percent strings are substituted:

    %f    URI of the selected file.
    -onFileActivated string (default: "")
    TO BE COMPLETED.
    -onFolderChanged string (default: "")
    TO BE COMPLETED.
    -onSelectionChanged string (default: "")
    Tcl command which is executed if the item selected in the chooser id changed. Before evaluation the following percent strings are substituted:

    %f   Name of the selected file.
    -onUpdatePreview string (default: "")
    TO BE COMPLETED.
    -overwriteConfirm boolean (default: 0)
    Whether or to display a warning dialog if the user selects a file that already exists.
    -previewWidget string (default: "")
    ID of a Gnocl widget to display a custom preview of the currently selected file.
    -previewWidgetActive boolean (default: 1)
    Whether the preview widget is active.
    -selectFileName string (default: "")
    TO BE COMPLETED.
    -selectMultiple boolean (default: 0)
    Whether multiple files may be selected.
    -showHidden boolean (default: 0)
    Whether hidden files are shown.
    -title string (default: "")
    Title of the dialog. -visible; boolean; 1 Whether or not the item is visible.

    Description

    A fileChooserDialog is used to let the user select a directory or one or more files in a standardized way.

    This command has been available since GTK+ 2.4.

    Commands

    id delete
    Deletes the widget and the associated Tcl command.
    id configure [-option value...]
    Configures the widget. Option may have any of the values accepted on creation of the widget.
    id cget option
    Returns the value for one option. The option may have any of the values accepted by configure.

    Example

    # basic Tcl/Gnocl Script
    #!/bin/sh \
    exec tclsh "$0" "$@"
    package require Gnocl

    proc changed {f w b1 b2} {
        switch [file extension $f] {
            .ogg -
            .wav {
                $w configure -visible 1
                $b1 configure -onClicked "gnocl::sound $f"
                $b2 configure -onClicked "gnocl::sound cancel"
                }
        default {
                $w configure -visible 0
                }
        }
    }


    set but1 [gnocl::button -text PLAY ]
    set but2 [gnocl::button -text STOP ]
    set box [gnocl::box -children [list $but1 $but2] -visible 0 ]

    gnocl::fileChooserDialog \
        -extraWidget $box \
        -title "Select Audio File" \
        -onSelectionChanged {changed %f $box $but1 $but2}

    gnocl::mainLoop

    The second example shows how to set file filters for the dialog.

    # basic Tcl/Gnocl Script
    #!/bin/sh \
    exec tclsh "$0" "$@"
    package require Gnocl

    set myFilters {Source {*.c *.tcl} Text {*.txt *.odt} Graphics {*.png *.jpg *.tif} }

    gnocl::window -child [gnocl::button \
        -text click-me \
        -onClicked {
            puts [gnocl::fileChooserDialog \
                -overwriteConfirm 1 \
                -fileFilters $myFilters \
                -currentFolder [pwd] \
                -title "Open Jiumoluo Project File -1"] }]
